Homie HM series hydraulic stone grapple wood grapple designed for mount on 4-50 Ton excavator.Mainly used to handling of stone, log, piping, steel bar, marble blocks and disposable waste and many others. Available model HM at HM03 HM04 HM06 HM08 HM10 HM14 HM20.
Products Categories
Grapple >
Hydraulic Double Cylinder Grapple>
Stone/Rock Grapple
Log Grapple
Swing Type Grapple
Cotton Grapple
Hydraulic Single Cylinder Grapple>
Steel Grapple
Log Grapple
Mechanical Grapple>
Steel Grapple
Log Grapple
Scrap Grapple(Orange Peel Grapple)>
Fixed Type Grapple
Rotating Grapple
Swing Type Grapple
Hydraulic Railway Sleeper Grapple>
Concrete Grapple >
Crusher and Screener >
HMBC Serial Bucket Crusher>
HMBS Serial Bucket Screener>
Sleeper Changer >
Mining Tyre Handler >
Quick hitch >
Hydraulic Quick Hitch Coupler>
Mechanical Quick Hitch Coupler>
Mini Quick Hitch >
Compactor >
Fixed Type Compactor >
Changeable Compactor >
Pulverizer >
Fixed Type Pulverizer>
Mini Pulverizer >
Products Introduction
Wood or steel grapple is one of the working devices of excavator. Grapple is one of the working device accessories designed, developed and manufactured independently for the specific working requirements of excavator.
Features
Made from Q345B manganese steel .Made of wear resistance steel, equipped with large size cylinder so that extends working life.
Solenoid valve and hydraulic control easily operation
Heavy duty 360° rotating hydraulic grapples with 2 cylinders suitable for grabbing scrap metals, steel ,stone material and tube objects
Light weight, wide opening jaws, good grabbing performance.
Using high-performance check valve to ensure the operator's safety.
Economic
Scope of Application
Homei hydraulic wood grabber and steel grapple can be used to grab stone, log, piping, steel bar, marble blocks and partial wastes. The hydraulic grapples are made of wear resistance steel, equipped with large size cylinder so that extends working life, suitable for various kinds of excavators and skid loader such as KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.

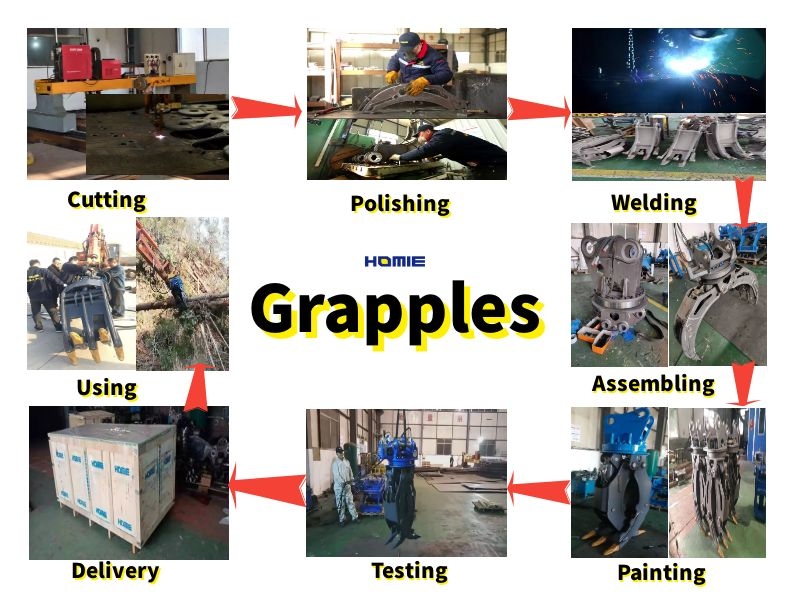

Production Process
We are professional manufacture of Hydraulic Rotating Wood Grapple, Stone Grapple, Steel Grapple in Yantai
Products details
|
Item |
Unit |
HM04 |
HM06 |
HM08 |
HM10 |
|
Weight(kg) |
kg |
386 |
1015 |
1750 |
2050 |
|
Length |
mm |
1300 |
1890 |
2100 |
2320 |
|
Height |
mm |
1380 |
2050 |
2400 |
2550 |
|
Width mm |
mm |
425 |
560 |
720 |
820 |
|
Width mm 1 |
mm |
223 |
324 |
420 |
480 |
|
Oil pressure |
Kg/cm² |
120-160 |
150-170 |
160-180 |
160-180 |
|
Set up pressure |
Kg/cm² |
180 |
190 |
200 |
210 |
|
Operating flue |
L/M |
50-100 |
90-110 |
100-140 |
130-170 |
|
Suitable excavator |
Ton |
4-8 |
8-16 |
17-23 |
24-30 |
