HOMIE Hydraulic grapple designed for Stone, Rock/ Steel/ Scrap metal/ Iron etc material handing. With different model for 4-30T excavator use
Products Categories
Hydraulic Breaker >
Silence Type Hydraulic Breaker>
Top Type Hydraulic Breaker>
Side Type Hydraulic Breaker>
Grapple >
Hydraulic Grapple>
Hydraulic Sleeper Grab
Hydraulic Mini Log Grapple
Hydraulic Log Grapple
Hydraulic sleeper grab
Hydraulic Rock&Steel grapple
Hydraulic Scrap Grapple
Mechanical Grapple>
Mechanical Grapple
Forestry Equipment >
Rotating Log Grapple >
Timber Trailer Crane & Log Grapple >
Crusher and Screener >
Screening Bucket>
HMBC Serial Bucket Crusher>
Compactor >
Mounting Optional Compactor >
Fixed Type Compactor >
Pulverizer & Shear >
Heavy Duty Large Steel Shear>
Excavator Hydraulic Shear >
Rotary Type Pulverizer >
Fixed Type Pulverizer>
Sleeper Changer >
Sleep Changer>
Mining Tyre Handler >
Mining Tyre Handler>
Products Introduction

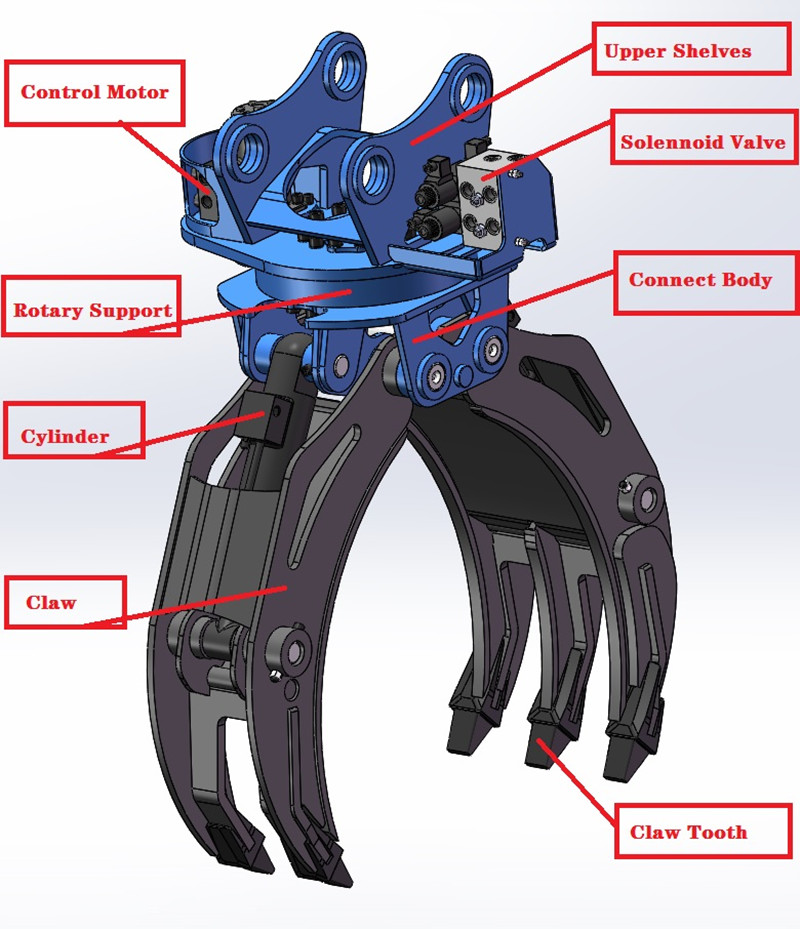

Hydraulic rotating grapple: three grabs on one side and two grabs on the other side, forming five fingers interlaced and tightly clasped together with the holding flap. The double cylinder stone grapple has strong holding force and strong structure. The rotary grapple needs to be refitted with excavator pipeline and hydraulic system to achieve 360 degree rotation. The hydraulic grapple is flexible in control and work freely, and its working efficiency is multiplied.They can be used for loading and handling a large variety of materials such as municipal waste, organic waste, scrap metal, foliage, hay, dirt, gravel, sand, wallboards, bricks, etc.
We can also provide you with customized services according to your needs.
Features
1. Light weight with wide opening jaws show outstanding performance of grabbing as well as maximizing operating efficiency.
2. Full 360 degree hydraulic rotation.
3. Made of wear resistance steel and equipped with large cylinder that extend working life, enhance productivity on the job site.
4. High-performance check valve utilized to ensure the operator's safety.
5. There are double oil cylinders with great grip and strong stability.
6. Using Q345B/NM400 good material for a long life service.
Specification
| Item | Unit | HM03 | HM04 | HM06 | HM08 | HM10 | HM14 | HM20 |
| weight | kg | 320 | 390 | 740 | 1380 | 1700 | 1900 | 2100 |
| Max jaw opening | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 | 2700 |
| Oil pressure | Kg/cm² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | 180-200 |
| Set up pressure | Kg/cm² | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
| Operating flux | L/m | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Cylinder volume | Ton | 4.0*2 | 4.5*2 | 8.0*2 | 9.7*2 | 12*2 | 12*2 | 14*2 |
| Suitable excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
HOMIE Grapple Support Customers' Work
A 20T grade grapple work with SANY200C excavator for steel material handling.
A 20T Class Grapple for Stone Handling ( 3+2 structure) and Customized 4+3 structure Heavy duty.
A 6T Class Grapple with a 7.5T Railway Excavator for Sleeper Changing work
Stone /Rock/ Wood Grapple Production Process Chart

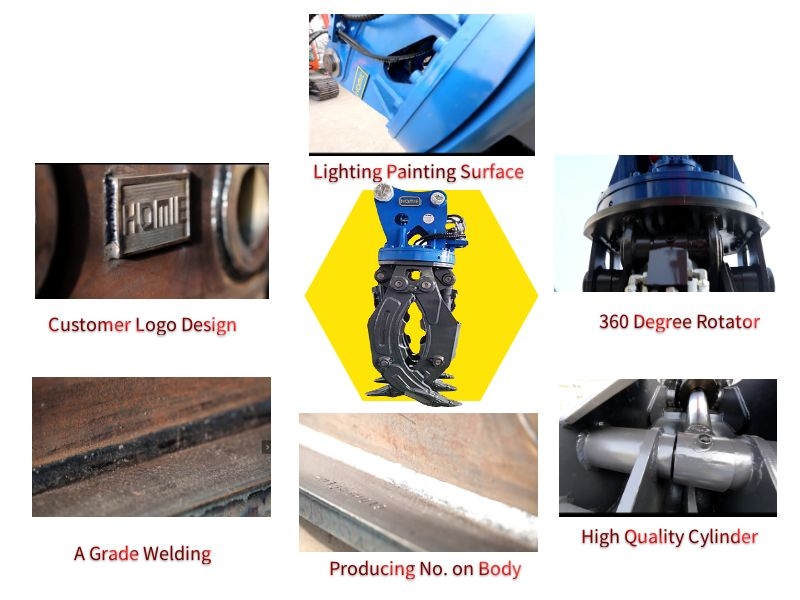

Production Details
Installation of Oil Pipe
Customized Grapple
Scope of Application
Homie hydraulic stone grapple can be used to grab stone, log, piping, steel bar, marble blocks and partial wastes. The hydraulic grapples are made of wear resistance steel, equipped with large size cylinder so that extends working life, suitable for various kinds of excavators and skid loader such as KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
